Darcy Friction Factor

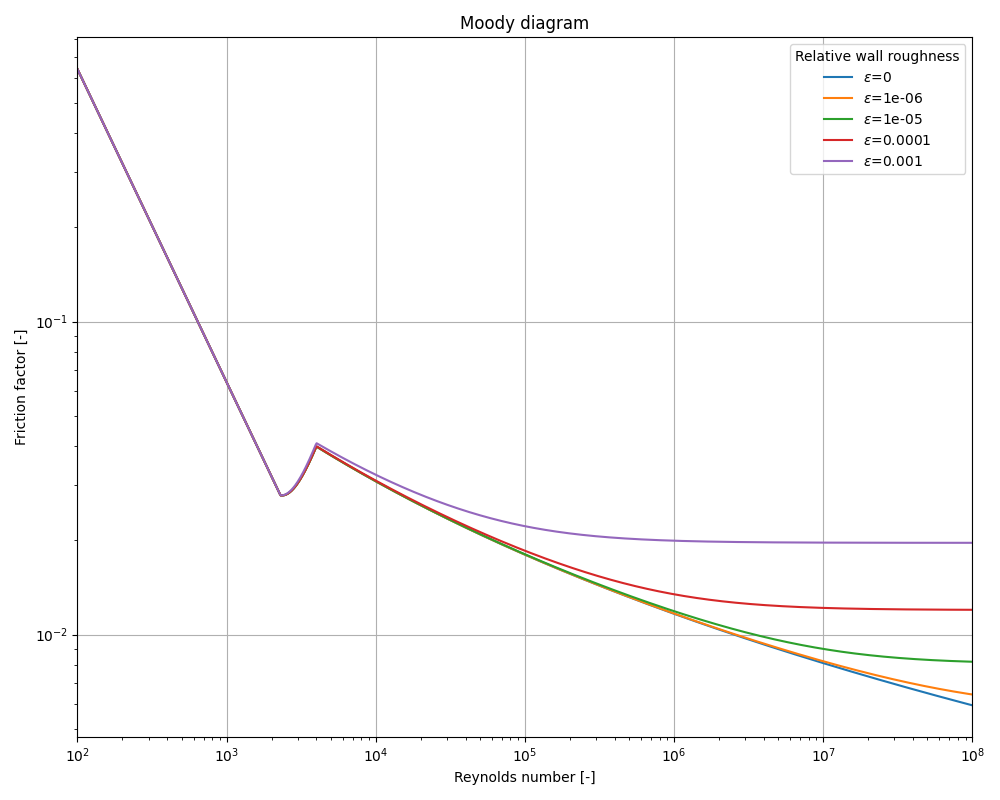

This example generates a Moody diagram using the Darcy friction factor function

import warnings

import matplotlib.pyplot as plt
import pandas as pd
import numpy as np

from indsl.fluid_dynamics import Darcy_friction_factor

# suppress "No frequency information was given" warning - Frequency information is derived from datetime index
warnings.filterwarnings("ignore")

n = 1000
Re = pd.Series(np.power(10, np.linspace(2, 8, n)))


roughness_scaled_parameters = [0, 1e-6, 1e-5, 1e-4, 1e-3]

fig = plt.figure(figsize=(10, 8))
for roughness_scaled_parameter in roughness_scaled_parameters:
    roughness_scaled = pd.Series(roughness_scaled_parameter * np.ones(n))
    friction_factor = Darcy_friction_factor(Re, roughness_scaled, laminar_limit=2300.0, turbulent_limit=4000.0)
    plt.loglog(Re.array, friction_factor.array, "-", label=r"$\epsilon$=%1.2g" % (roughness_scaled_parameter))
plt.xlabel("Reynolds number [-]")
plt.ylabel("Friction factor [-]")
plt.grid(1)
plt.xlim([min(Re.array), max(Re.array)])
plt.legend(loc=0, title="Relative wall roughness")
plt.title("Moody diagram")
plt.tight_layout()
plt.show()
